Strip Tube and Plate Sealers

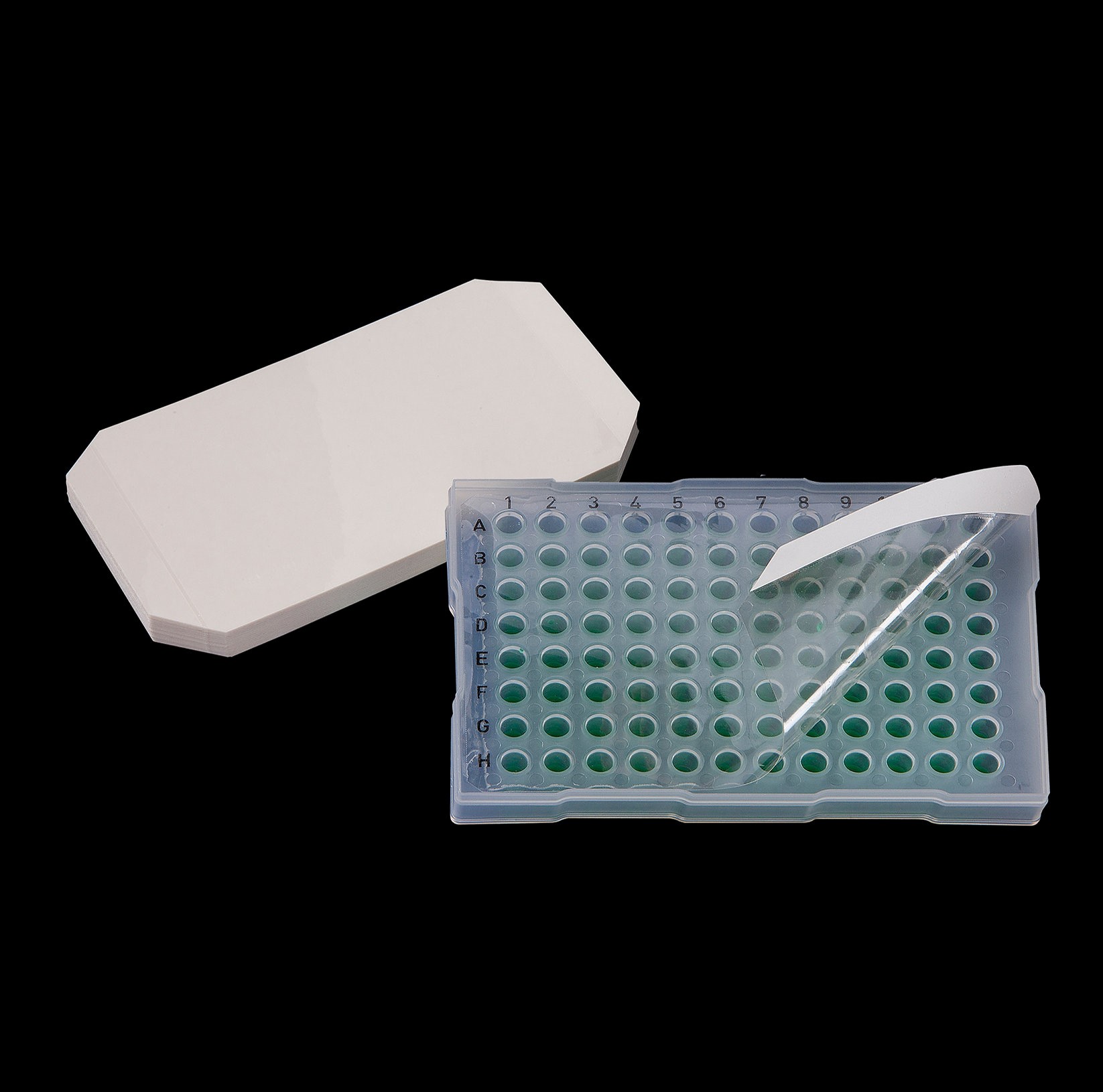

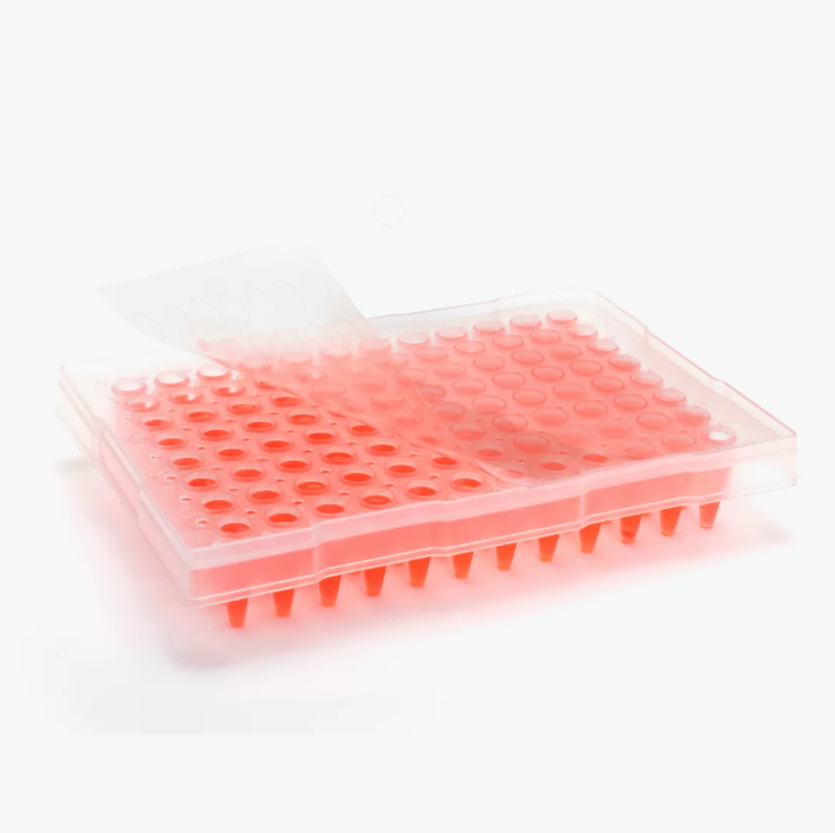

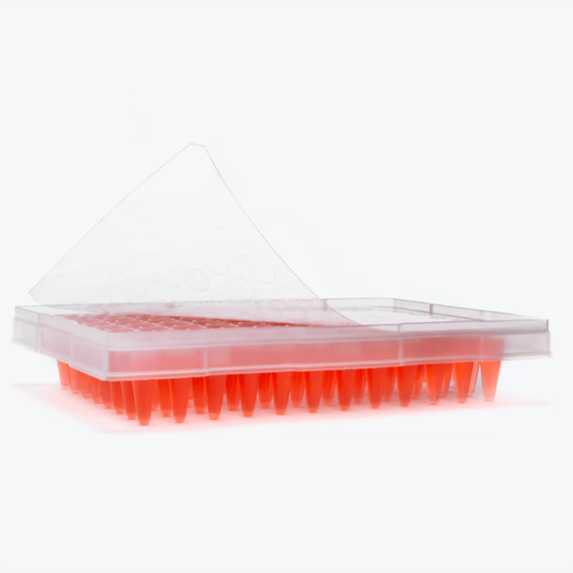

96-Well/384-Well PCR Plate Sealing Films
P4F22- Features
- Customizable to be the roll version for automation or a robotic sealer
- Functional temperature range from -20°C to +120°C
- Specially formulated adhesive provides an excellent seal to minimize evaporation and reduce cross-contamination
- Removes easily and cleanly from plate surfaces with no splash back as can occur with strip PCR caps
- Features two end-tabs with perforations for ease of handling, application and removal
- Certified DNase- & RNase- free
Description
Applications
- PCR
- Sample storage
- Robotics (Automation)
Specifications and Ordering Information
| Item No. | P4F22-C | P4F22L-C | |
|---|---|---|---|
| Sheet (LxW) | 140.462 x 78.308 ± 0.38 mm | 143.002 x 81.49 ± 0.38 mm | |
| End-Tabs | 10.16 ± 0.38 mm | 9.525 ± 0.38 mm | |
| Perforations (from edge of film) |
11.176 ± 0.38 mm | 10.541 ± 0.38 mm | |
| Corner Radii | 1/16" | 3/32" | |
| Thickness | Film | 2.0 mil ±10% | |
| Adhesive | 1.5 mil ~ 1.8 mil | ||
| Release Liner | 4.8 mil ±10% | ||
| Materials | Film | Polyester | |
| Adhesive | Acrylic | ||
| Release Liner | White Poly-Coated Paper | ||
| Packaging | 100 sheets/pkg | ||
